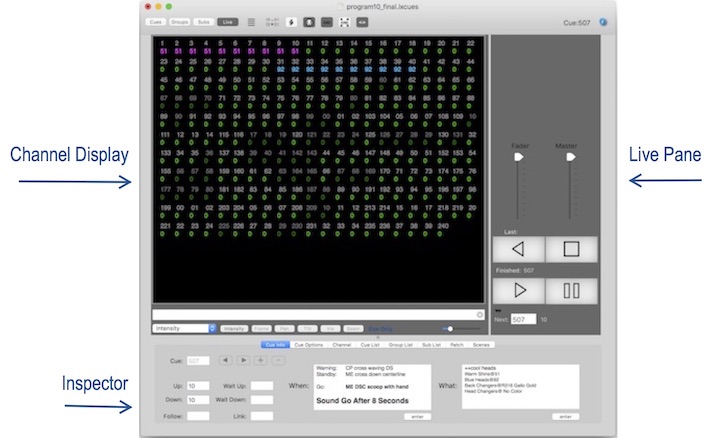

LXConsole Main Window LXConsole has a traditional "channel@level" display showing one cue at a time. The familiar channel display is combined in a split screen, with a Live Control Pane and an Inspector that provides editing of information about the cue, and other functions. The colors used by the main display indicate if levels are increasing, decreasing or remaining constant from the previous cue. A channel is underlined if it has been marked as changed from the last cue. At the bottom of the main window there is a command line that is used for setting levels and other functions. Clicking on the main channel display selects the current cue and allows Copy and Paste commands to be used. Clicking on channel numbers in the main display selects them and adds them to the command line. You can use the scroll wheel with the cursor over the main display to set the levels of selected channels. At the top of the main window there is a toolbar of buttons that duplicate functions found in the cue and view menus. At the bottom of the channel display there is a popup menu and set of buttons that select the current sub-channel that is shown in the channel display. Conventional channels such as those supported by standard ASCII cues use only the default intensity sub-channel. Additional sub-channels can be added using the channel setup sheet. |
